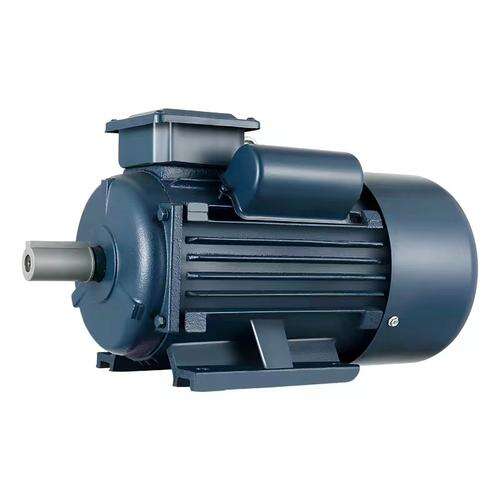

When selecting motor flange materials, they need to stand up to rotational forces and mechanical stress. For heavy duty work, look for tensile strength above 400 MPa and hardness levels between 150 to 250 HB when using steel alloys. Recent research from ASME in 2023 showed something interesting too. Flanges with Brinell hardness under 120 HB broke down about 63% quicker when subjected to high torque conditions. The material's durability really depends on its microstructure. Fine grained options such as ASTM A182 F11 show around 40% better fatigue resistance compared to regular carbon steel when dealing with repeated loads. Most experienced engineers will tell you to check mechanical properties against actual load requirements for specific applications before making final selections.
Moisture, chemicals, and dirt particles actually break down flange integrity at around 2.3 times the speed of regular mechanical wear alone. Take stainless steel 316L for example it typically corrodes less than 0.1 mm per year across most pH levels from 3 to 11. Compare that to carbon steel which loses about 0.8 mm annually under similar conditions. Coastal areas present special challenges too. When different metals come into contact with unprotected surfaces, salt spray can boost galvanic corrosion by nearly double what we normally see. That's why smart engineers follow the latest NACE MR0175 guidelines these days. They check out temperature changes, sunlight damage, and air quality factors long before picking materials for installation projects.
When different materials expand at different rates under heat, problems happen fast. Take aluminum flanges connected to steel pipes for instance these combinations warp about three times as much as properly matched ones when temperatures reach around 200 degrees Celsius. That kind of mismatch creates real headaches for engineers dealing with thermal stress. Looking at vibration issues another angle shows similar concerns. Tests indicate that pumps made with nickel based alloys face significantly fewer problems with resonant frequencies, cutting down risk by roughly four fifths according to industry data. And don't forget about seals either. Regular EPDM gaskets simply cannot handle petroleum based oils for long periods. They break down nearly ten times quicker than their fluorocarbon counterparts when exposed to such lubricants, which explains why many maintenance teams now specify higher quality sealing options despite the extra cost.
Steel flanges that go into high pressure steam systems need to handle at least 16 bar pressure, so they must show Charpy V-notch impact values over 27 joules when tested at room temperature around 20 degrees Celsius. Some materials such as Alloy 625 hold their ground pretty well, keeping yield strength above 550 mega pascals even after going through those brutal temperature swings from minus 40 down to plus 540 degrees Celsius. When dealing with sour gas conditions where hydrogen sulfide is present, using NACE certified duplex steel becomes essential because these materials resist sulfide stress cracking issues that start showing up once H2S levels pass the 50 parts per million mark. Looking at actual field performance data, we find that getting the right combination of materials can really make a difference. Refinery pump systems typically see their average time between failures jump from about 8 thousand hours all the way up to nearly 23 thousand hours when proper material selections are made.
Carbon steel accounts for 63% of industrial flange applications due to its cost efficiency and tensile strength up to 70 ksi. However, stainless steel grades like 304 and 316L offer four times greater corrosion resistance in acidic environments, making them essential in chemical processing. This trade-off highlights a core selection principle:
Alloy steels such as ASTM A182 F91, enhanced with chromium and molybdenum, withstand temperatures over 1,000°F in turbine connections. For lightweight performance, aluminum alloy 6061-T6 reduces flange weight by 40% in aerospace actuators without compromising load capacity. These materials serve specialized needs where conventional steels are insufficient, including:
A 2022 failure analysis showed that 72% of flange leaks in coastal plants stemmed from inadequate chloride resistance. The following hierarchy guides material selection:
| Environment | Recommended Material | Service Life |
|---|---|---|
| <5 ppm chlorides | Carbon steel | 15–20 years |
| 5–50 ppm chlorides | 316 stainless | 25+ years |
| >50 ppm chlorides | Hastelloy C-276 | 35+ years |
The 2023 Flange Materials Report confirms carbon steel's 58% market share in refinery piping aligns with ASTM A105’s 55 ksi yield strength. In contrast, nuclear facilities require SA-182 F316L stainless steel for radiation resistance, despite its 3.2× higher cost. This cost-performance balance drives rigorous material audits in critical infrastructure.
The American Society for Testing and Materials sets important industry standards through specs like A36 and A182. These standards outline what's allowed in terms of chemical makeup, set minimum strength requirements for materials (for instance, Grade 316 stainless needs at least 70 ksi tensile strength), and specify how to conduct those Charpy impact tests down at really cold temperatures around minus 40 degrees Fahrenheit or Celsius. Looking at real world applications, plants that followed the ASTM A105 guidelines for carbon steel saw their flange replacement expenses drop by roughly 34 percent, based on findings from a recent compliance analysis published in 2023. Of course, actual savings can vary depending on specific facility conditions and maintenance practices.
IEC B-series standards address operational precision often missing in generic specs:
Compliance ensures reliable torque transmission and maintains hydrocarbon leakage below 100 ppm in oil pump applications.
Material grade directly influences performance under extreme conditions:
| Property | Carbon Steel (ASTM A350) | Alloy Steel (ASTM A694) |
|---|---|---|
| Max Operating Temp | 650°F (343°C) | 850°F (454°C) |
| Hydrogen Embrittlement Resistance | Moderate | High |
| Cost Index | 1.0 | 2.3 |
Plants using optimized flange grades report 78% fewer unplanned shutdowns (NACE SP21468-2024). Proper certification prevents failures like the 2022 Gulf Coast refinery incident caused by misgraded F51 duplex steel flanges.
A Midwestern chemical plant experienced premature failure of carbon steel motor flanges in a sulfuric acid unit. Within 18 months, 74% of flanges developed stress corrosion cracks, causing $740k in unplanned downtime and repairs (Ponemon 2023). This case underscores the necessity of environment-specific material selection.
Metallurgical analysis identified three root causes:
As highlighted in industry research, material-environment mismatches account for 38% of industrial flange failures.
Global demand for stainless steel motor flanges in chemical applications rose 12% year-over-year (Grand View Research 2023), driven by superior performance metrics:
| Material Property | Carbon Steel | 316 Stainless Steel |
|---|---|---|
| Sulfuric Acid Resistance | Poor | Excellent |
| Maintenance Frequency | 2x/year | 0.5x/year |
| Lifecycle Cost | $8.21/lb | $5.94/lb |
Leading facilities now conduct biennial material compatibility audits that:
This proactive strategy has reduced flange-related incidents by 41% in early-adopter plants over five years (ASM International 2022).
