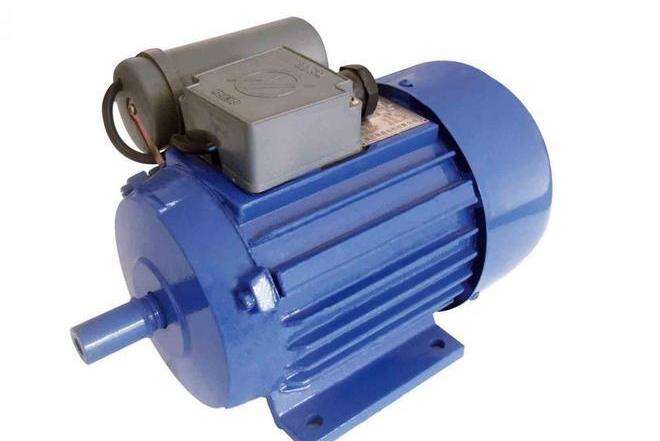

Motor flanges serve as mounting interfaces designed to connect electric motors directly to equipment they drive, like pumps or compressors. These connections are made through bolts and create a solid link between components. The main advantage here is that there's no play or slack in the system, which keeps everything aligned properly. Alignment matters a lot in industry settings actually. Even something as small as 1mm off track can lead to energy waste ranging from about 12% up to around 15%. Motor flanges help maintain this alignment so structures stay intact and power gets transferred efficiently without losing strength along the way. For machines that need to perform at their best with little give or flexibility, these flanges become pretty much necessary parts of the setup.
Shaft couplings basically transfer power between shafts even when there's some misalignment happening. The good ones are built with either rubber parts or metal components that soak up those annoying vibrations and protect the delicate bearings and gears from getting damaged. Because they can handle all sorts of alignment issues, these couplings show up everywhere from factory machinery to car transmissions. Take the automotive industry for instance, where proper coupling ensures smooth power delivery through the drivetrain without constant breakdowns. What sets them apart from stiff flange connections is this ability to move just enough to keep things running smoothly despite all the bumps and changes in load that happen during normal operation.
Motor flanges deliver rigid power transmission via precisely machined steel connections, making them perfect for applications such as turbine generators where even tiny millimeter deviations matter. Couplings work differently though they give up some stiffness to handle those inevitable misalignments we see in actual installations. This approach actually cuts down on bearing replacements quite a bit around 30-40% in moving parts systems according to field reports. When it comes to materials, there's a clear difference too. Flanges typically go for strong alloys meant to last forever basically. But couplings often use stuff like polyurethane because these materials absorb vibrations better and adjust to temperature changes without breaking down over time.
Motor flanges rely on precision bolted joints to form a solid connection between motors and whatever equipment they drive, making sure there's absolutely no movement between the shafts. The strength of these connections makes them ideal for applications that require lots of torque, like those big power generation turbines we see at plants everywhere. Alignment here needs to be spot on, usually within about 0.05 mm or better. When bolts are properly tightened across the joint, they can handle pretty serious torque forces, up to around 15,000 Nm according to some recent industry reports from Machinery Dynamics in 2023. But there's a catch with all this rigidity. Because the connection is so stiff, installers have to get everything perfectly aligned during setup. And once installed, these flanges don't account for things like temperature changes causing materials to expand or contract, nor do they handle any shifting in the foundation over time.
Flexible couplings typically have either rubber-like inserts or metal parts that bend to handle misalignments between shafts and cut down on vibrations running through machinery. These designs can manage around 3 degrees of angle difference and about 5 millimeters of side-to-side movement. What's really impressive is how they bring down vibration transmission by somewhere between 40% and 60% when compared with stiff, non-flexible connections according to research from the Vibration Analysis Journal last year. We see them all over the place in heating systems and boats' engines where things get shaken up constantly. The downside? They give up roughly 20% to 30% of what they could otherwise transmit as torque power. But for applications dealing with changing weights or temperature swings that cause expansion and contraction, this flexibility makes all the difference in keeping equipment running smoothly without breaking apart.
| Factor | Rigid Motor Flange | Flexible Coupling |
|---|---|---|
| Thermal Expansion | Induces stress at 0.1 mm/°C ΔT | Compensates up to 8 mm expansion |
| Shock Loads | Transmits 95% of impact forces | Absorbs 30–50% of sudden loads |
| Maintenance Cycles | 8,000–10,000 hours | 5,000–7,000 hours |
Rigid flange systems perform best in thermally stable environments, whereas flexible couplings are vital in systems exposed to frequent load changes or temperature swings exceeding ±50°C.
Rigid flange couplings create strong, backlash-free connections through bolted joints, which makes them perfect for heavy duty equipment like pumps, compressors, and turbines where even minor misalignment can lead to system failure. These types of couplings can withstand torsional forces exceeding 50,000 Nm in power plants, and they play a vital role in keeping operations running smoothly at steel mills and mining sites. Their rock solid construction and ability to transfer massive amounts of torque without losing efficiency is why engineers rely on them so heavily in industrial settings where downtime costs money and safety matters most.
Rubber or polyurethane inserts make elastomeric flange couplings great at absorbing vibrations while handling about 3 degrees of angular misalignment. These couplings cut down on bearing wear significantly too. Some studies from 2023 maintenance reports show around a third less wear in paper mills and food processing plants when using these types of couplings. They can handle pretty high speeds too, going all the way up to 12 thousand rpm. That makes them ideal for applications where things get hot and shaky, like centrifugal fans and those CNC spindles that tend to drift thermally during operation. The combination of shock absorption and speed tolerance is why many plant engineers prefer these over other coupling options.
| Coupling Type | Key Features | Industrial Use Cases |
|---|---|---|
| Split Flange | Two-piece bolted design | Mining crushers, HVAC systems |
| Marine Grade | 316 stainless steel construction | Ship propulsion, offshore rigs |
| Protected Flange | Dust/chemical-resistant seals | Cement plants, chemical mills |
Split flange couplings enable rapid maintenance without full drivetrain disassembly, cutting downtime by 45% during refinery pump repairs. Marine-grade versions resist saltwater corrosion for over 15 years in tidal energy installations, while sealed protected flanges prevent contamination in cement kilns operating above 200°C.
Getting motor flange systems installed right means paying close attention to how the shafts line up. Most professionals aim for around 0.05 mm tolerance if they want everything running smoothly. These days, laser alignment tools are pretty much what everyone uses instead of old fashioned dial indicators. The difference is huge actually – studies show these lasers cut down on angular misalignment problems by about 90%. Plants that switched over to this method tend to see their bearings last roughly 35% longer because there's just less vibration causing wear and tear according to the latest data from the Mechanical Systems Report in 2024.
Rigid flange installations take 2–3 hours of skilled labor due to meticulous torque sequencing and alignment verification. In contrast, flexible couplings typically install in 45–60 minutes, benefiting from inherent tolerance to minor misalignments–up to 3° angular deviation–without compromising initial operation.
Motor flange systems operating over 5,000 hours annually require quarterly checks of bolt tension (recommended 80–120 Nm for M12 fasteners) and biannual alignment verification. When properly maintained, flange connections sustain 98% transmission efficiency for 7–10 years, outperforming flexible couplings in abrasive or dusty environments where elastomeric components degrade up to 40% faster.
Motor flanges tend to be the go-to choice for applications that require constant operation under high torque conditions, think centrifugal pumps or turbine generators. These systems demand absolutely no play between components and need extremely accurate alignment down to about 0.05 mm or less. The solid construction of motor flanges allows them to transfer power straight through to the base structures, which makes all the difference when dealing with massive machines rated at several megawatts. According to research published by Rotary Power Systems last year, compressors connected via flanges can handle twisting forces around 18 percent better compared to models that rely on flexible couplings. This kind of performance matters a lot in installations where system stability is not just important but absolutely critical for safe operation.
When dealing with extreme heat or corrosive conditions such as those found in chemical facilities where acidic fumes are present, stainless steel motor flanges simply work better than plastic alternatives which start breaking down once temperatures hit around 150 degrees Celsius. Power plants located near coastlines often upgrade their systems with nickel plated flanges combined with labyrinth seals. According to Marine Engineering Digest from last year, these modifications result in about 30-35% improvement in reliability after five years when compared against regular coupling setups. Mining operations face another challenge altogether with constant vibration and movement. Hardened flanges address this issue effectively by reducing what engineers call 'fretting corrosion' since they stop those tiny movements that happen in regular flexible connections over time.
The combination of flexible and rigid components in paper mill operations shows real benefits when it comes to system durability. Recent field tests from last year indicated something interesting happened when about one fifth of those traditional flange connections got swapped out for disc type couplings. The results? Bearing problems dropped by almost half in areas where thermal expansion was causing issues. Looking at newer developments, torque limiting couplings are becoming standard partners for motor flanges on conveyors these days. These setups can handle up to plus or minus one degree of misalignment without sacrificing much power transfer efficiency either, hitting around 98% effectiveness based on industry standards for material movement equipment.
A motor flange is designed to connect electric motors directly to the equipment they drive, ensuring proper alignment and efficient power transmission.
Shaft couplings accommodate misalignment, dampen vibrations, and protect components like bearings and gears, essential for smooth operations in various machinery.
Proper alignment minimizes energy waste and ensures efficient power transfer. Misalignment as small as 1mm can cause energy losses of 12% to 15%.
Flexible couplings incorporate materials that allow for limited movement, absorbing misalignments and reducing vibration, hence protecting system components.
The decision is based on application needs, environmental conditions, and the strength and flexibility required for efficient system operations.
