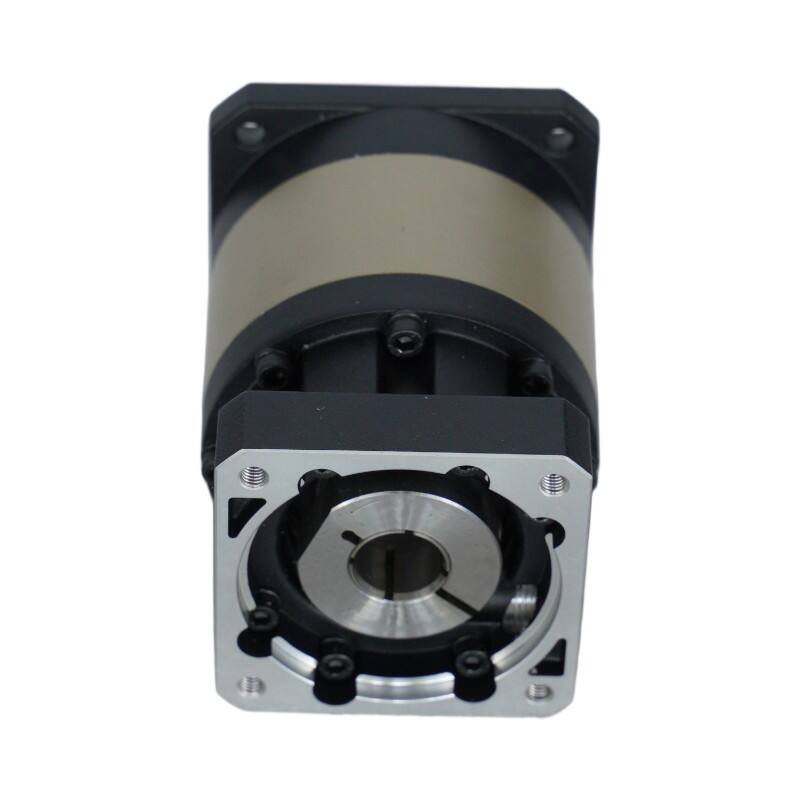

Gearboxes are basically mechanical devices that change how fast something spins and how much power it delivers from whatever drives them, whether it's an engine, motor, or other power source. Kind of like how someone might translate spoken words from one language to another, these boxes take the spinning motion coming in and turn it into different speeds and forces on the other end. Inside most gearboxes we find all sorts of parts working together including gears that mesh with each other, metal shafts that spin around, bearings that let things rotate smoothly, plus various seals to keep everything contained properly. Take cars for instance their transmissions act as special kinds of gearboxes that tweak what comes out of the engine so wheels can spin at just the right pace. This lets cars go faster when needed without overworking the engine, or gives extra oomph when climbing those really steep hills that would otherwise leave anyone stuck halfway up.
Modern industrial gearboxes typically include:
A motor spinning at 3,000 RPM paired with a 30:1 gear ratio reduces output speed to 100 RPM while multiplying torque by 30—a key principle demonstrated in industrial applications requiring precise force control.
At their core, gearboxes act like mechanical multipliers, boosting torque so machines can tackle tough jobs while still keeping things running smoothly at just the right speed. Take manufacturing plants for instance where these components let conveyor belts haul around massive weights - sometimes up to 10 tons worth of material - all without losing control over how fast everything moves. The automotive world depends on similar principles too. Car transmissions work basically the same way, helping engines maintain good performance whether driving through city traffic or speeding down highways. And don't forget about renewable energy either. Wind farms wouldn't function properly without those special gearbox setups that take the slow spinning blades and turn them into something useful for generating electricity. These mechanical marvels really are behind so much of what we see in modern industry today.
Studies conducted by mechanical engineering experts indicate that when gearboxes are correctly sized, they can boost system efficiency by around 40% across various types of industrial equipment. These components excel at doing things like redirecting power through different angles using those specialized bevel gears, or getting really high reduction ratios with worm gears. That's why gearboxes form such a critical part of how power gets distributed throughout so many industries today, ranging all the way from robotic assembly lines down to complex aerospace applications. Imagine trying to run any kind of mechanical system without these essential parts – it just wouldn't have enough control over movement or generate sufficient force to handle anything beyond basic tasks on a large scale.
Gearboxes work by changing how much turning power gets transferred through gears that are carefully designed to mesh together. The heart of any gearbox is what we call the gear ratio, basically how fast the input shaft spins compared to the output shaft. Take a common 5 to 1 ratio for instance. If the input shaft spins at 1500 revolutions per minute, the output only turns at 300 RPM instead. This basic concept lets machines multiply torque when needed while slowing things down just right. We see this all over manufacturing plants where conveyor belts need extra muscle but not so much speed, or in big wind turbines that convert those slow blade rotations into usable electricity.
The inverse relationship between torque and speed governs gearbox functionality. High gear ratios (e.g., 10:1) deliver:
This conversion enables diesel engines generating 200 Nm to drive mining excavators requiring 2,000 Nm through industrial gear systems. As detailed in Mechanical Advantage Studies, modern helical gearboxes achieve 95%+ efficiency in this conversion process.
Interlocking gear teeth strategically distribute mechanical loads across multiple contact points. Planetary gear systems exemplify this principle, using sun, planet, and ring gears to:
This mechanical advantage makes planetary configurations indispensable in aerospace and robotics applications where space constraints and reliability are paramount.
Today's gear systems typically fall into four main categories that handle different mechanical needs across industries. Helical gearboxes work really well in heavy duty settings because their teeth are cut at an angle which allows smoother operation under load. Bevel gears come into play when we need to transfer power at a right angle between two crossing shafts, something common in many machine tools. Worm gear setups are pretty much the go to choice whenever there's a need for massive speed reductions above 20:1 ratio marks. And then there are planetary gears that pack a lot of torque into compact spaces thanks to their concentric arrangement. Most factories still rely on these basic types for power transmission tasks, with industry reports from last year showing they cover about 8 out of 10 cases in manufacturing plants worldwide.
Angled teeth meshing in helical designs reduces vibration by 40% compared to spur gears, making them ideal for metal processing equipment and high-speed conveyor systems. Their gradual tooth engagement minimizes shock loads, extending service intervals by 30% in cement production and food manufacturing environments.
Straight-bevel configurations handle moderate loads in automotive differentials and printing presses, while spiral-bevel variants support high-speed operations up to 20,000 RPM in aerospace systems. The curved teeth geometry improves contact ratios by 25% versus traditional designs, according to 2024 transmission efficiency benchmarks.
With single-stage reductions reaching 100:1, worm systems prevent back-driving in elevators and security gates through inherent mechanical resistance. Their bronze-on-steel gear materials achieve 95% efficiency in HVAC damper controls, though thermal management remains critical for sustained high-torque operations.
Multiple gear meshing in planetary designs distributes forces across three or more satellites, achieving torque densities 300% higher than parallel-shaft alternatives. This makes them indispensable in robotics joints and wind turbine pitch control mechanisms where space constraints and precision coexist.
Gearboxes are essential parts that transmit power across many different industries, including everything from factories to wind farms. On factory floors, these devices take the raw power from motors and turn it into just the right amount of speed and force needed for jobs such as pressing metal sheets or moving product along packaging lines. Warehouses and distribution centers depend heavily on industrial grade gearboxes to keep those long conveyor belts running smoothly so products can flow through without getting stuck anywhere. Power generation facilities have their own special needs too. They need custom built gearboxes to handle all sorts of equipment like massive turbines and high pressure pumps at power stations. These installations demand rock solid reliability even when conditions change constantly throughout the day.
Car engines rely heavily on both helical and planetary gearboxes when it comes to getting the most out of fuel consumption while delivering proper torque. What these gearbox systems basically do is change gear ratios so the engine can keep performing well whether the vehicle is accelerating from a stop or just cruising down the highway at steady speed. Over in industrial settings we see similar but much tougher gearboxes at work. Take mining operations for instance, where massive excavators and rock crushers need gearboxes strong enough to handle incredible weight and rough conditions without breaking down. A good case in point would be spiral bevel gearboxes used extensively in steel production facilities. These particular units transmit power at angles inside those mills, and they absolutely must last forever because downtime costs companies millions. Precision matters too since even small errors can lead to major quality issues in finished products.
Gearboxes play a crucial part in making wind power work effectively. Take those big wind turbines for instance. The planetary gear systems inside them take the slow spinning motion from the blades (about 12 to 25 revolutions per minute) and speed it up to over 1,500 RPM what the generator actually needs. According to some research from Ponemon back in 2023, these conversions hit around 95 to 98 percent efficiency which is pretty impressive considering all the moving parts involved. Mining operations face similar challenges but with different solutions. They often use worm gearboxes equipped with self locking features so they can lift massive weights safely sometimes over 50 tons worth of material. For both industries, finding ways to combat corrosion while keeping maintenance costs down means going for materials that stand up to tough environments and designing components that can be swapped out quickly when something breaks down.
Modern industrial operations demand gearboxes that balance three critical performance metrics: energy efficiency, load capacity, and noise control. A 2024 industry analysis reveals that high-performance gearboxes in industrial applications operate at 90–98% efficiency, with even minor improvements reducing energy costs by up to 15% annually.
When talking about efficiency, we're basically looking at how much output power comes out compared to what goes in, and where those losses happen because of things like friction, heat buildup, and when components aren't properly aligned. The amount of weight or force a gearbox can take before breaking down varies depending on the type of gears used. Helical gears generally hold up better under stress, often handling around 20% more load than similar sized spur gears. Many factories now require noise levels under 75 decibels, especially in places making cars and other vehicles. Getting there means careful alignment of gears and using special materials that absorb vibrations. There's also something called NEEAMP standards that help manufacturers check all these different aspects together, not just looking at performance numbers but also considering how green the process is and how easy it makes putting everything together on the factory floor.
Material selection plays a pivotal role—case-hardened steel alloys improve load-bearing capacity by 30% compared to standard alloys, while polymer composites reduce noise by 12%. Recent studies show that optimized lubrication protocols restore 2–5% efficiency in aging systems, proving maintenance is as critical as initial design choices.
A gearbox is used to change the speed and torque of a motor, engine, or other power source. It allows for adaptations in speed and load size for different applications, optimizing performance and efficiency.
A gearbox operates by transferring power between gears, which are carefully designed to mesh together, translating rotating motion from a power source into varied speed and torque at the output.
The main components include gears for transferring force, shafts for transmitting energy, bearings to reduce friction, and seals to prevent leaks and contamination.
Common types include helical, bevel, worm, and planetary gearboxes. They are used across industries from manufacturing and automotive to renewable energy, each suited to specific tasks like speed reduction or torque amplification.
Gear ratios determine how input rotation is converted into output speed and torque. Higher gear ratios typically reduce speed while increasing torque, useful for applications needing high force at low speeds.
