Small DC Motor Maintenance Tips

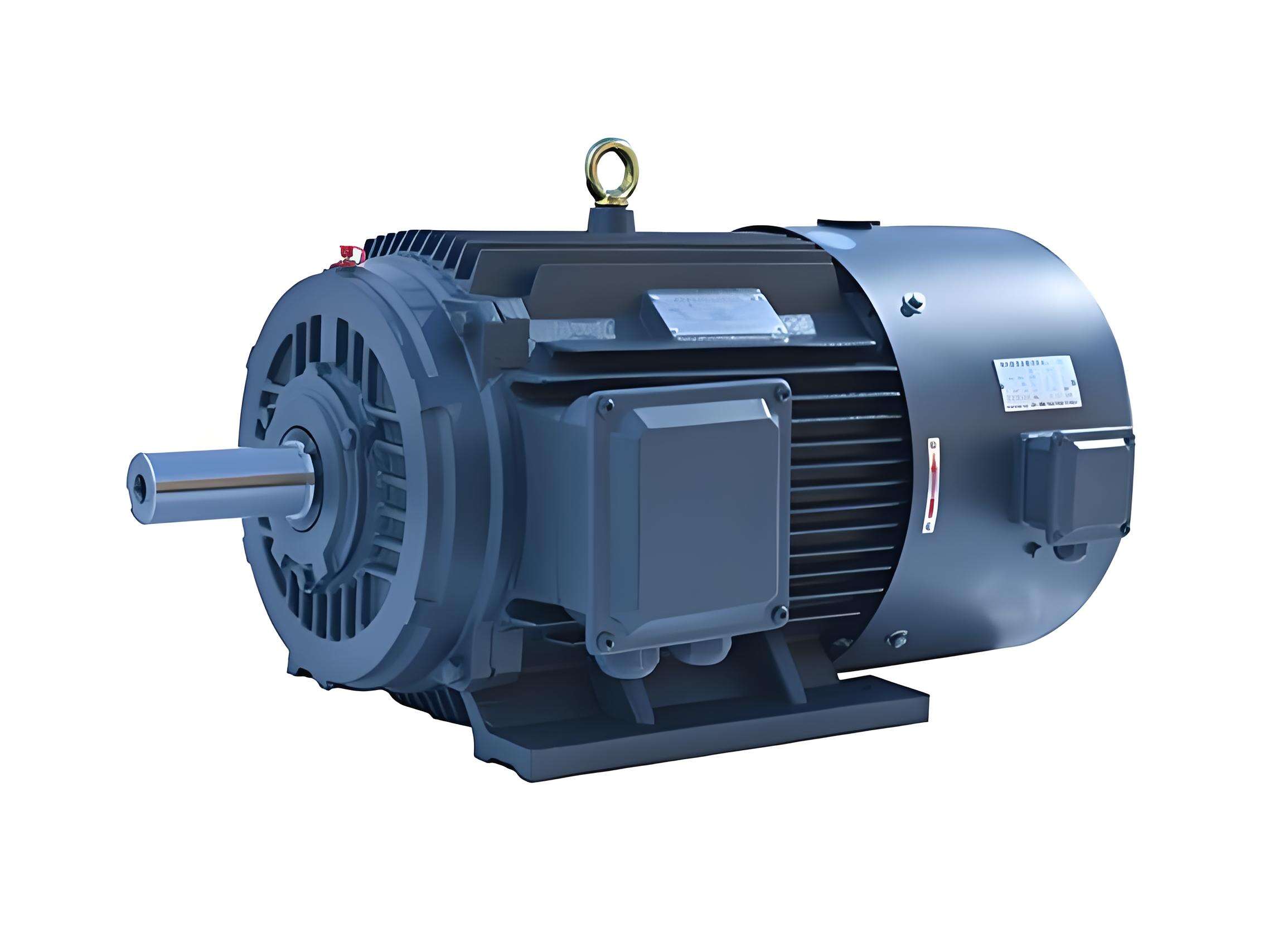

Inspecting Brushes and Commutator for Optimal Performance

Keeping those brushes and commutators in good shape stops around 70-75% of early motor failures happening in factories and plants across the country. Think about it these parts are basically what keeps small DC motors running, they transfer electricity through them even as they deal with all that friction and heat buildup from day to day operation. When companies neglect checking on these components regularly, they end up with machines that just don't perform right and eventually need expensive fixes down the road. The numbers back this up too research indicates that motors without proper brush maintenance actually use about 18 percent extra power each year, which adds up fast for any business owner looking at their bottom line.

Signs of Worn Brushes and Commutator Damage

Watch for these red flags:

• Excessive sparking during operation, indicating poor electrical contact
• Grooved or discolored commutator bars, signaling uneven wear
• Carbon dust buildup around brushes, reducing conductivity
• High-pitched whining from brush chatter due to spring tension loss

Motors showing two or more symptoms typically require immediate servicing to avoid irreversible armature damage.

How Brush-Commutator Interaction Affects Small DC Motor Efficiency

The brush-commutator interface governs three key performance factors:

1. Electrical resistance: Worn brushes increase resistance, forcing motors to draw 10–15% more current
2. Heat generation: Pitted commutators create hotspots exceeding 160°F (71°C)—above Class B insulation limits
3. Torque consistency: Gapped brushes cause voltage fluctuations, leading to uneven RPMs

A MaintenanceWorld analysis found proper brush seating improves efficiency by 9% in small DC motors under 1HP loads.

Best Practices for Inspection Frequency and Replacement

Use non-conductive abrasives to polish commutators during inspections, maintaining a surface roughness ≤0.8 µin (0.02µm). Always measure spring pressure—18–22 oz (5.1–6.2N) is ideal for most small DC motors.

Monitoring Bearing Health to Prevent Premature Failure

Identifying Symptoms of Bearing Wear and Misalignment

Unusual noises (grinding/screeching), excessive heat (>80°C), and irregular vibrations signal bearing degradation in small DC motors. A 2023 Bearings Reliability Study found 62% of motor failures stem from undiagnosed bearing wear. Common failure patterns include:

Catching these signs early reduces repair costs by 83% compared to reactive maintenance (Industrial Maintenance Journal 2022).

The Role of Bearings in Small DC Motor Stability and Longevity

Precision bearings minimize radial play to ≤0.05 mm, maintaining rotor-stator alignment critical for efficient power transfer. In fractional-horsepower motors, properly maintained bearings extend service life by 2.4—compared to neglected units (Electromechanical Systems Report 2024). Key functions include:

• Dissipating axial/radial forces from electromagnetic fields
• Preventing armature sag that increases brush arcing
• Dampening harmonic vibrations linked to insulation breakdown

Proactive Inspection Routines and Use of Vibration Sensors

Implement vibration analysis with wireless sensors (20–10,000 Hz range) to detect early-stage defects. Leading manufacturers recommend:

• Baseline readings during motor commissioning
• Monthly RMS velocity measurements (≤4.5 mm/s acceptable)
• Quarterly spectrum analysis for frequency spikes

Condition-based lubrication schedules guided by sensor data reduce lubricant consumption by 37% while preventing contamination-induced failures.

Maintaining Proper Ventilation and Thermal Management

How Blocked Cooling Paths Lead to Overheating in Small DC Motors

Airflow restriction continues to be the main problem causing thermal stress issues in small DC motors. When vents get clogged with dust particles, operating temperatures can jump anywhere between 18 to 22 degrees Celsius based on various motor efficiency research findings. Motors with blocked cooling paths end up holding onto about 34 percent more heat than what they're supposed to handle, which speeds up the breakdown of insulation materials over time. The situation gets even worse for equipment running in factories filled with airborne particulates or those that operate on stop-start schedules throughout their service life. Industrial maintenance teams often report these overheating problems as one of the top reasons for premature motor failures in manufacturing plants.

Safe Operating Temperatures and Insulation Class Considerations

Small DC motors with Class B insulation can run continuously when ambient temps stay between 80 to 90 degrees Celsius. The tougher Class F models handle heat better, surviving conditions up to around 115 degrees. But pushing these limits has consequences. When motors operate consistently beyond their temperature ratings, the grease in bearings starts breaking down much quicker about 40% faster actually and windings tend to fail twice as often compared to normal operating conditions. Looking at thermal imaging studies reveals another problem too. Motors that regularly exceed their temperature specs for more than 200 hours each year show brush wear increasing by roughly two thirds compared to properly cooled units. This kind of degradation adds up fast in industrial settings where downtime costs money.

Effective Cleaning and Maintenance of Motor Vents

Most industry standards suggest changing intake filters somewhere between three to six months based on how dusty the environment gets, plus doing compressed air cleanings around every 300 hours of operation time. Research published in 2025 showed these regular maintenance practices cut down on dirt buildup inside small DC motors by roughly 78 percent according to their thermal management analysis. When cleaning though, make sure the motor is completely off and not running at all. Use air pressure below 30 psi for safety reasons since higher pressures can actually get debris into the bearings where it doesn't belong.

Using Thermal Sensors and IR Cameras for Temperature Monitoring

Infrared cameras now detect ±1.5°C temperature variations across motor surfaces, identifying failing bearings 35% earlier than manual inspections. Wireless thermal sensors integrated with SCADA systems trigger alerts when winding temperatures exceed manufacturer limits by 15%, allowing preventive shutdowns before insulation damage occurs.

Ensuring Reliable Electrical Connections and Power Transfer

Risks of Loose or Corroded Terminals in Small DC Motors

When terminals on small DC motors get loose or start corroding, they can boost electrical resistance anywhere between 30% to 40%. This leads to problems like localized overheating and dangerous arcing events. As months go by, the insulation materials begin to break down, creating hot spots all over the motor housing which ultimately cuts down how long the motor will last before needing replacement. Environmental factors play their part too. Moisture in the air or leftover chemicals from cleaning processes accelerate corrosion rates significantly. Motors with poor connections often struggle under heavy loads, sometimes losing as much as a quarter of their normal torque output when pushed beyond standard operating conditions.

Importance of Secure Connections for Efficient Operation

When electrical connections are made securely, they cut down on wasted energy and keep power flowing consistently throughout systems. Recent research from 2023 showed that motors with terminals tightened correctly and protected against oxidation ran at efficiencies between 92 to 96 percent, while those left unmaintained only hit around 78 to 85 percent efficiency. The material choice matters too. Terminal blocks made with high conductivity copper alloys, something we see more often in modern connector designs, can slash voltage drops by about 30 percent when systems are running at maximum capacity. This makes a real difference in industrial settings where every bit of efficiency counts.

Scheduled Checks for Terminal Blocks and Lead Wires

Implement quarterly inspections for small DC motors in industrial environments, focusing on:

• Torque verification: Use calibrated tools to ensure terminals meet manufacturer-specified 0.6–1.2 N·m ranges
• Corrosion prevention: Apply dielectric grease to exposed contacts in humid conditions
• Strain relief: Check lead wire anchorage points for abrasion or bending beyond 45°

Motors subjected to vibration or thermal cycling require monthly infrared scans to detect early-stage connection degradation.

Following Manufacturer Guidelines for Lubrication and Preventive Care

Following the lubrication guidelines set by equipment manufacturers helps avoid two common problems in small DC motors: putting on too much grease which actually draws in dirt particles, or not enough grease which wears down bearings faster. Recent research from 2025 indicates plants that adjust their grease schedules based on how hard their motors work save around 37% on replacing worn bearings versus those sticking to rigid monthly routines. Most motor makers recommend lithium complex grease for regular duty situations (usually NLGI grade 2 consistency) while polyurea based products tend to perform better at higher speeds. The viscosity should generally fall somewhere between 100 to 150 centistokes when measured at room temperature. Industrial maintenance teams have noticed through thermal scans that motors running consistently 18 degrees Fahrenheit hotter than surrounding air often signal trouble with degraded lubricants, so these need attention right away. To keep things running smoothly, it makes sense to check seals every three months alongside automated lubrication systems that deliver approximately 0.1 to 0.3 grams each time they apply grease.
